SharePoint Integration

This guide brings the SharePoint WS-Federation integration walkthrough into our product documentation and updates it for current IdentityServer options.

It covers both:

• Duende IdentityServer with Rsk.WsFederation.DuendeIdentityServer
• Open.IdentityServer with Rsk.WsFederation.OpenIdentityServer

Overview

SharePoint can use WS-Federation as an external identity protocol. With the WS-Federation component, your IdentityServer instance can act as the identity provider (IdP) and SharePoint can trust it using a SAML token-signing certificate.

At a high level, you will:

1. Configure IdentityServer for WS-Federation
2. Add a WS-Federation client and relying party settings
3. Export and trust the signing certificate in SharePoint
4. Register IdentityServer as a trusted token issuer in SharePoint
5. Enable the new authentication provider on your web app

1) Add the WS-Federation component

Install the package that matches your IdentityServer runtime.

dotnet add package Rsk.WsFederation.DuendeIdentityServer

dotnet add package Rsk.WsFederation.OpenIdentityServer

2) Configure IdentityServer

Add the WS-Federation plugin and configure your license key.

using Duende.IdentityServer;

services.AddIdentityServer()
    // Existing IdentityServer registrations
    .AddSigningCredential(new X509Certificate2("idsrv-signing.pfx", "password"))
    .AddWsFederationPlugin(options =>
    {
        options.Licensee = "DEMO";
        options.LicenseKey = "your license key";
    })
    .AddInMemoryRelyingParties(GetRelyingParties());

Enable middleware in your request pipeline:

app.UseIdentityServer()
   .UseIdentityServerWsFederationPlugin();

3) Add SharePoint as a WS-Federation client

Create a client for SharePoint where the ClientId is the expected WS-Federation realm, and the redirect URI matches SharePoint's WS-Federation callback endpoint.

new Client
{
    ClientId = "urn:sharepoint:portal",
    ProtocolType = IdentityServerConstants.ProtocolTypes.WsFederation,
    RedirectUris = { "https://sharepoint.contoso.com/_trust/" },
    PostLogoutRedirectUris = { "https://sharepoint.contoso.com/" },
    AllowedScopes = { "openid", "profile" }
};

Add relying party settings so claim names align with what SharePoint expects:

new RelyingParty
{
    Realm = "urn:sharepoint:portal",
    TokenType = WsFederationConstants.TokenTypes.Saml11TokenProfile11,
    ClaimMapping = new Dictionary<string, string>
    {
        { JwtClaimTypes.Name, ClaimTypes.Name },
        { JwtClaimTypes.Email, ClaimTypes.Email },
        { JwtClaimTypes.Role, ClaimTypes.Role }
    }
};

4) Get the WS-Federation metadata and signing certificate

By default, metadata is available at:

https://{identityserver-host}/wsfed

From metadata, identify your signing certificate and export it as a .cer file for SharePoint trust setup.

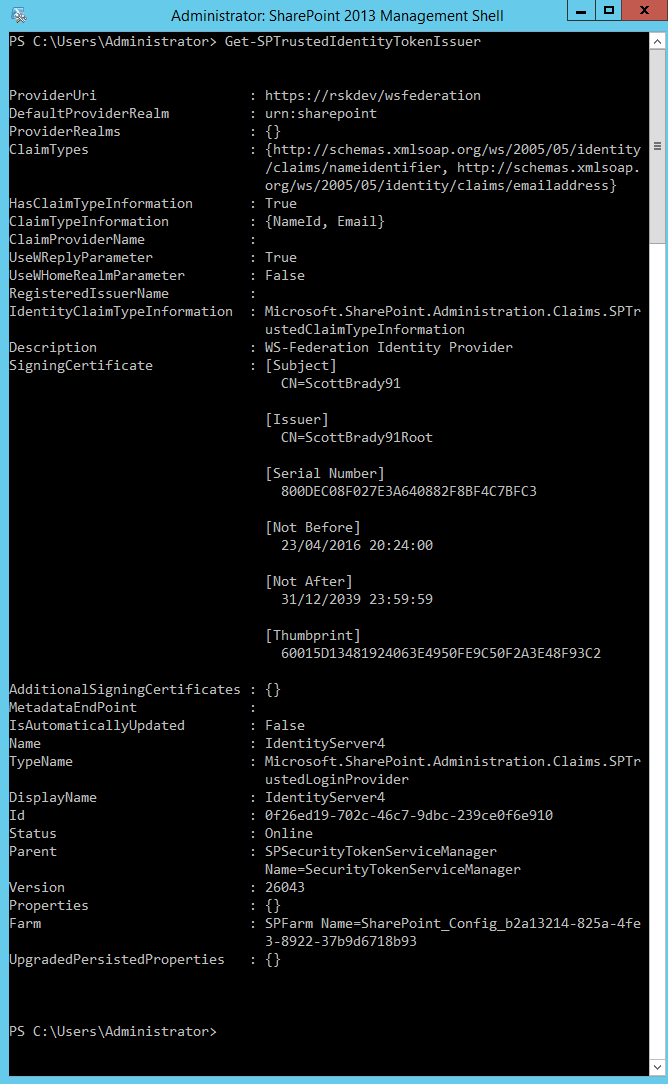

5) Register IdentityServer in SharePoint as a trusted token issuer

In SharePoint Management Shell (run as administrator), register the token issuer and map incoming claims.

$realm = "urn:sharepoint:portal"
$signInUrl = "https://idsrv.contoso.com/wsfed"
$cert = New-Object System.Security.Cryptography.X509Certificates.X509Certificate2("C:\certs\idsrv-signing.cer")

$mapEmail = New-SPClaimTypeMapping -IncomingClaimType "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress" -IncomingClaimTypeDisplayName "Email" -LocalClaimType "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress"
$mapName = New-SPClaimTypeMapping -IncomingClaimType "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/name" -IncomingClaimTypeDisplayName "Name" -LocalClaimType "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/name"

New-SPTrustedIdentityTokenIssuer -Name "IdentityServer" -Description "IdentityServer WS-Federation" -Realm $realm -ImportTrustCertificate $cert -ClaimsMappings $mapEmail,$mapName -SignInUrl $signInUrl -IdentifierClaim "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress"

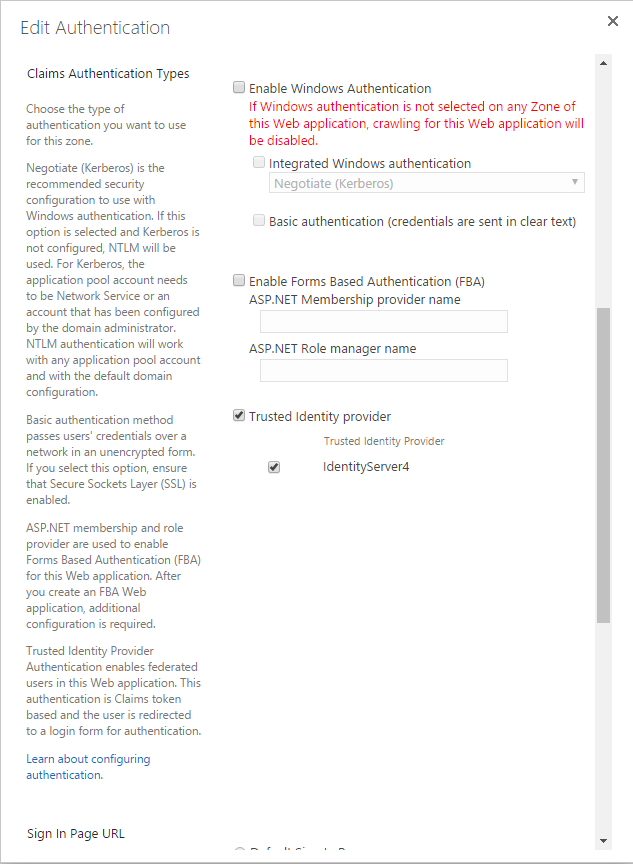

Then enable the trusted provider on your target web application authentication settings.

6) Validate the login flow

1. Browse to SharePoint.
2. Choose the new trusted identity provider.
3. Authenticate at IdentityServer.
4. Confirm you return to SharePoint as an authenticated user.

If login succeeds but authorization fails, verify SharePoint permissions and the emitted claim values (especially identifier/email/role).

Troubleshooting

• Audience/realm mismatch: ensure SharePoint realm and IdentityServer ClientId/RelyingParty.Realm are identical.
• Reply URL mismatch: ensure wreply maps to RedirectUris.
• Certificate errors: ensure SharePoint trusts the same certificate currently used by IdentityServer token signing.
• Missing claims: ensure claim mappings in RelyingParty.ClaimMapping and SharePoint claim mappings are aligned.
